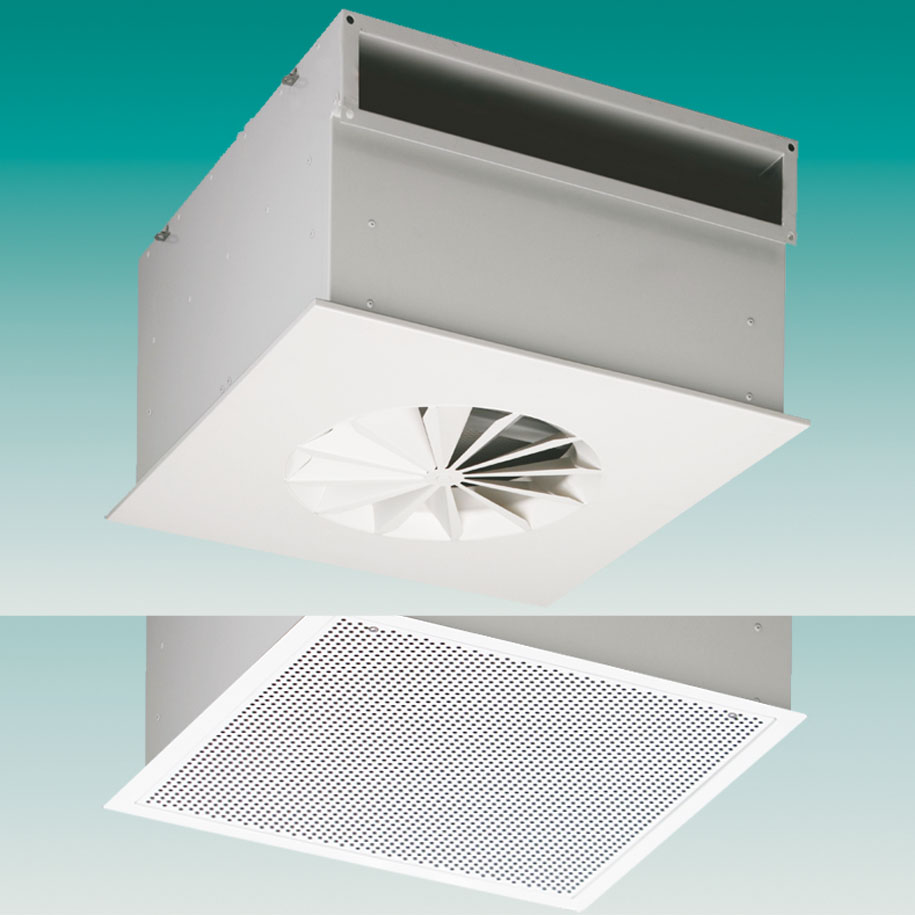

Puridrall PD / Puri-inlet PE, for filter cell replacement from above

Specificaties

  • Puridrall PD / Puri-inlet PE, for filter cell replacement from above

    Puridrall PD supply air outlet for turbulent mixing air flow, with HEPA filter for cleanroom classes 6 to 8 to DIN EN ISO 14644-1 (VDI 2083) or C and D to the EU-GMP directive. Puri-inlet PE return air inlet to filter return air from clean rooms directly at the collection point, with perforated sheet metal element for air intake.

    • Puridrall
    • Volume flow rate range:
    • Air outlet nominal diameter:
    • Discharge height: ​
    • 20 – 445 l/s [75 – 1 600 m³/h]
    • DN 180 to DN 500
    • 2.4 – 4.5 m
    • Puri-inlet
    • Volume flow rate range:
    • up to 555 l/s [2 000 m³/h]
    • Puridrall and Puri-inlet
    • Housing cross-section:
    • Housing height: ​
    • 330 mm x 330 mm to 635 mm x 635 mm
    • 320 – 435 mm
  • Categorie

    - HEPA filtersystemenCleanrooms

Omschrijving

  • Even dilution of pollutants emitted in the room
  • Airtight housing, all parts protected against corrosion and disinfectant-proof
  • HEPA filter cell type tested to DIN EN 1822-1, filter class H13 or H14 (optional)
  • Filter cell with dry seal or fluid seal
  • Filter cell replacement from above
  • Lateral or top air connection
  • Optionally fitted with airtight shutoff damper by hand or by electric or pneumatic servomotor
  • Connections for differential pressure measurement, particle sampling and leakage testing to DIN 1946-4
  • Downloads

E3.1.2_PD-PE_Puridrall and Puri-inlet
