Plaster cooling ceiling system PKS

Product specification

  • Plaster cooling ceiling system PKS

    – PKS-D, for plastered ceilings – PKS-W, for plastered walls ​Designed to connect shaped serpentine piping inside or outside the plaster area in order to make radiant cooling or heating ceilings or walls. The permanent large-surface contact between the PKS element and the plaster area is done by on-site plastering.​
    • Nominal length: ​1 000 mm – 5 400 mm
    • ​Nominal width:
    • 4 pipe rows, corresponds to 360 mm *)
    • 6 pipe rows, corresponds to 540 mm *)
    • ​Nominal thickness: ​20 – 25 mm
    • ​Connection type: press fitting; soldered connection on request
    • ​ ​*) Consult us on other design options
  • Category

    - Ceiling systems - Cool- and heatingsystems

Description

  • Heat transfer mainly by radiation, with very high thermal comfort as a result
  • Low overall thickness
  • For versatile applications thanks to customizable dimensions
  • The core of the system is copper serpentine piping which ensures quality and long lifetime; operating pressure 6 bars
  • Easy and safe installation according to professional methods, irrespective of the outside temperature
  • No combustible components
  • Quick response time owing to small plaster thickness

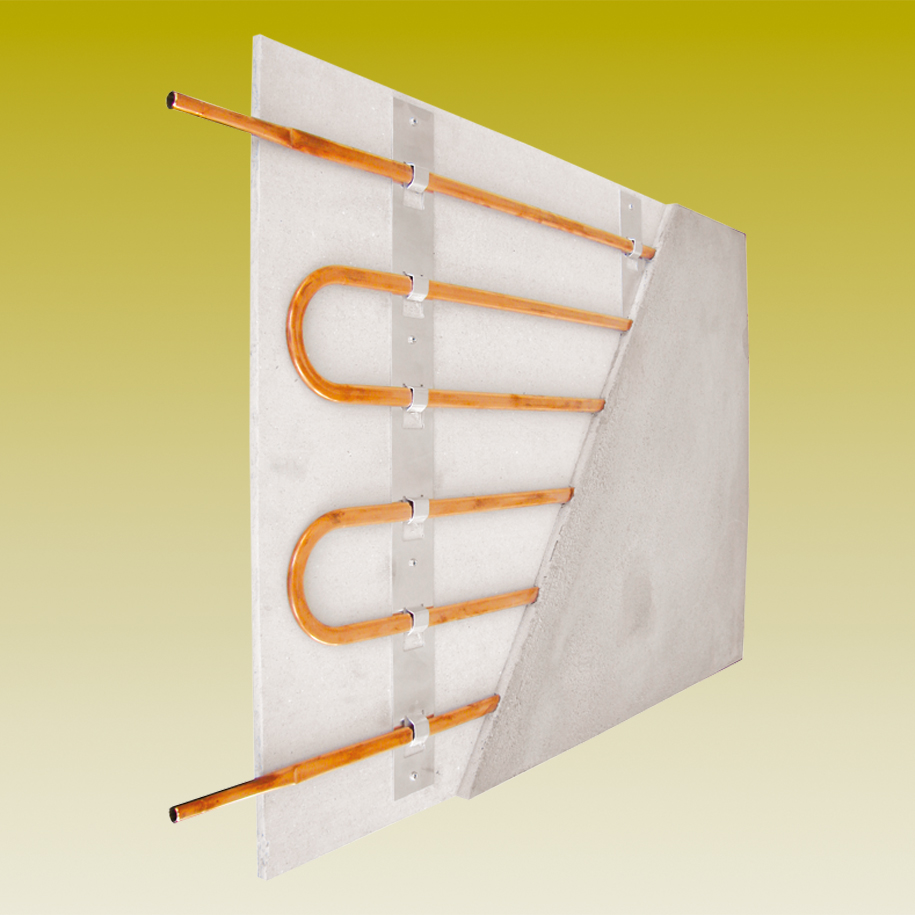

Productfoto’s
