Fibre filter F

Product specification

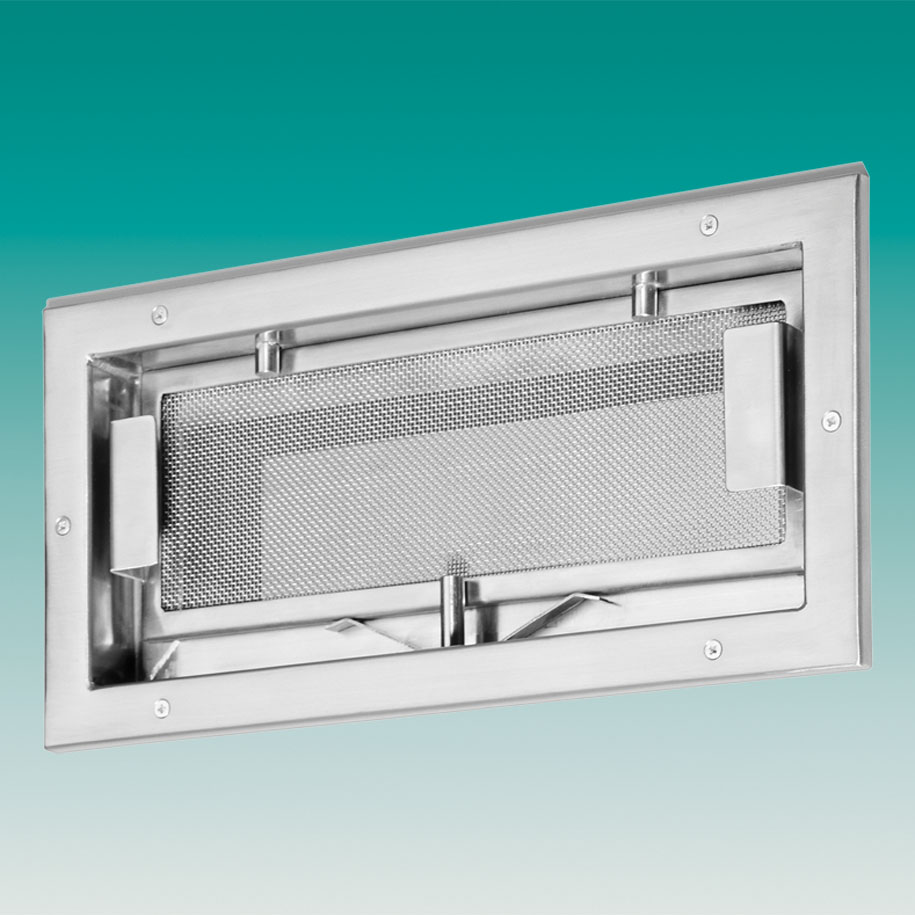

  • Fibre filter F

    ​Return air inlet for filtering textile fibres out of the return air of clean rooms, particularly operating theatres and ancillary rooms; for wall or duct mounting.​
    • Standard construction ​
    • ​Volume flow rate range: 65 – 1 670 l/s [230 – 6 000 m³/h]
    • Width x height: ​225 mm x 225 mm to 825 mm x 825 mm
    • ​Depth: ​80 mm
  • Category

    - Hospital ventilating systemsCleanrooms


  • Fibre retention on inward wire-mesh filter
  • Filter easily removable by hand, without tools, for maintenance and disinfection purposes
  • Mounting in smooth room or duct walls. Standard fibre filter dimensions same as those of customary return air grills; alternative sizing suitable for tiling
  • Available in many sizes
  • Material: stainless steel, material No. 1.4301
  • Well suited for refitting existing HVAC systems in clean rooms
  • Low sound power level


E3.2.2_F_Fibre filter
