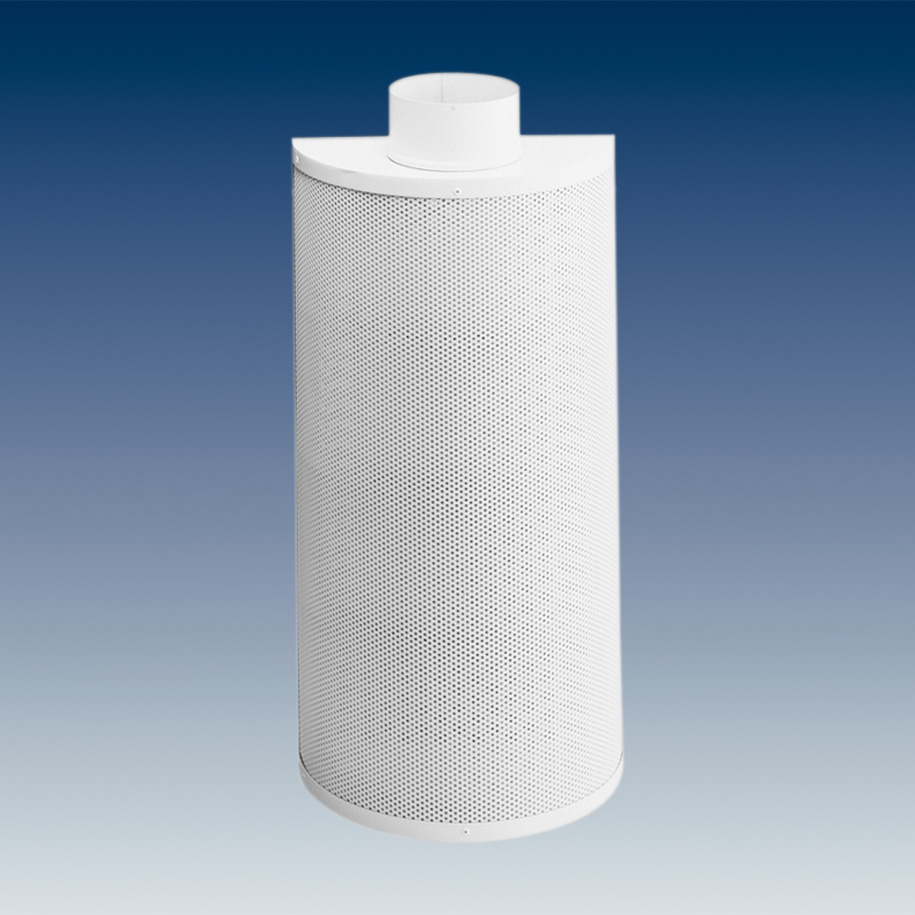

Semi-circular displacement outlet Q-ZH

Product specification

  • Semi-circular displacement outlet Q-ZH

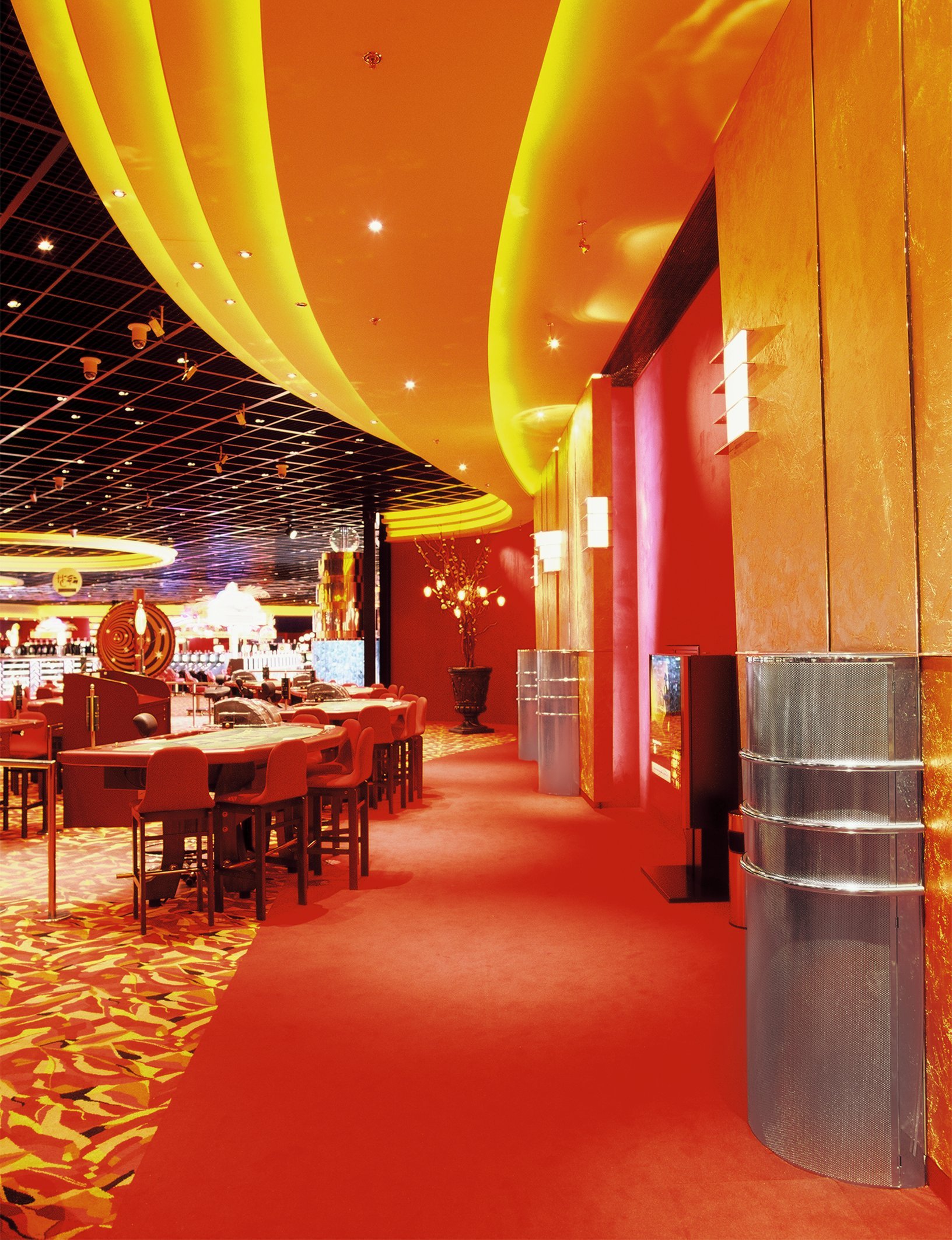

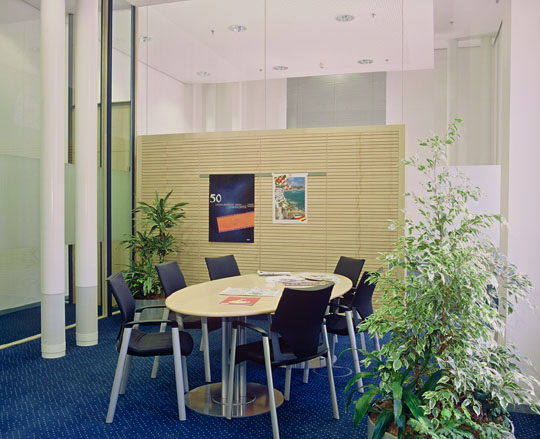

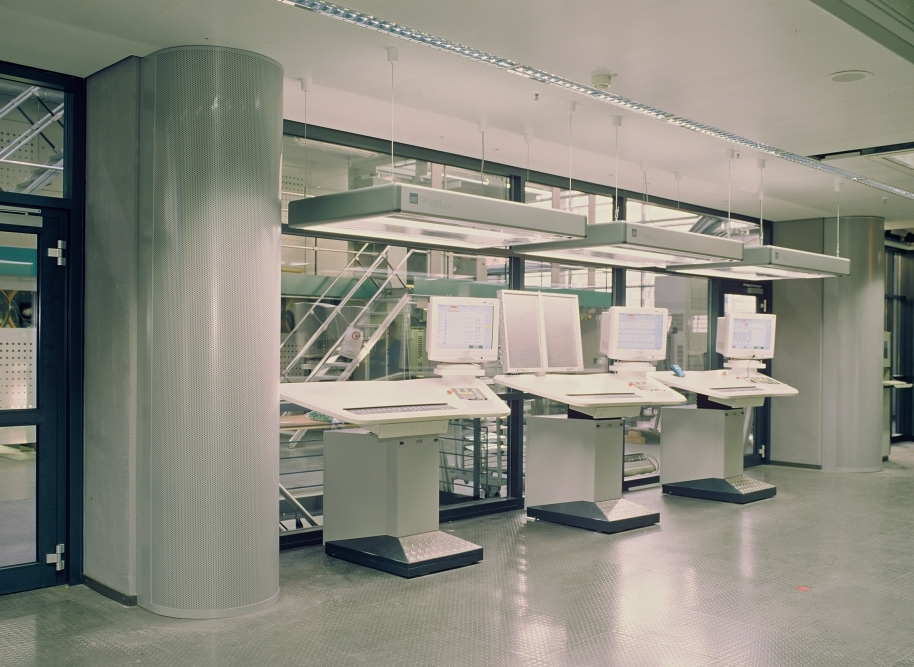

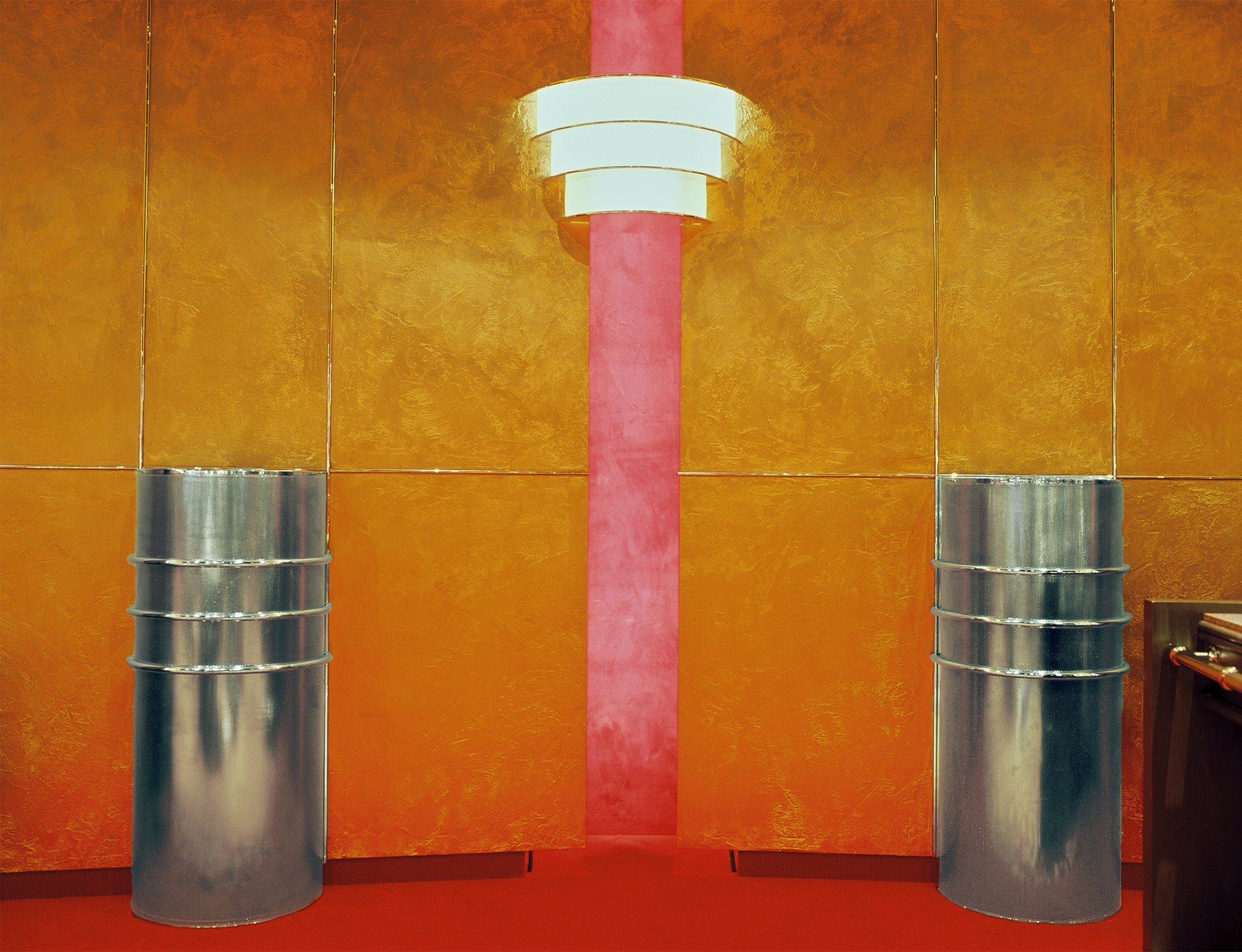

    For mounting on walls or pillars.
    • Volume flow rate range: ​≤ 360 l/s [1 300 m³/h]
    • ​Discharge velocity: ≤ 0.25 m/s
    • ​Coverage: ​5 – 15 m
    • ​Sound power level: ≤ 35 dB(A) ref. 10-12 W
    • ​Diameter: ​250 – 630 mm
    • ​Height: ​400 – 1 500 mm
    • [;nl]Luchtdebiet: tot 1.300 m³/h
    • Uitblaassnelheid: < 0,25 m/s
    • Indringdiepte: 5- 15 meter
    • Geluidsvermogenniveau: < 35 dB (A)
    • Afmetingen: 250 tot 630 mm
    • Hoogte: 400 tot 1.500 mm
  • Category

    - Displacement comfort sector

Description

  • Even, horizontal, low-turbulence discharge flow
  • Connection from above or below, depending on type

Downloads

E1.4.2.2_Q-ZH_Semi-circular displacement outlet_wTC
