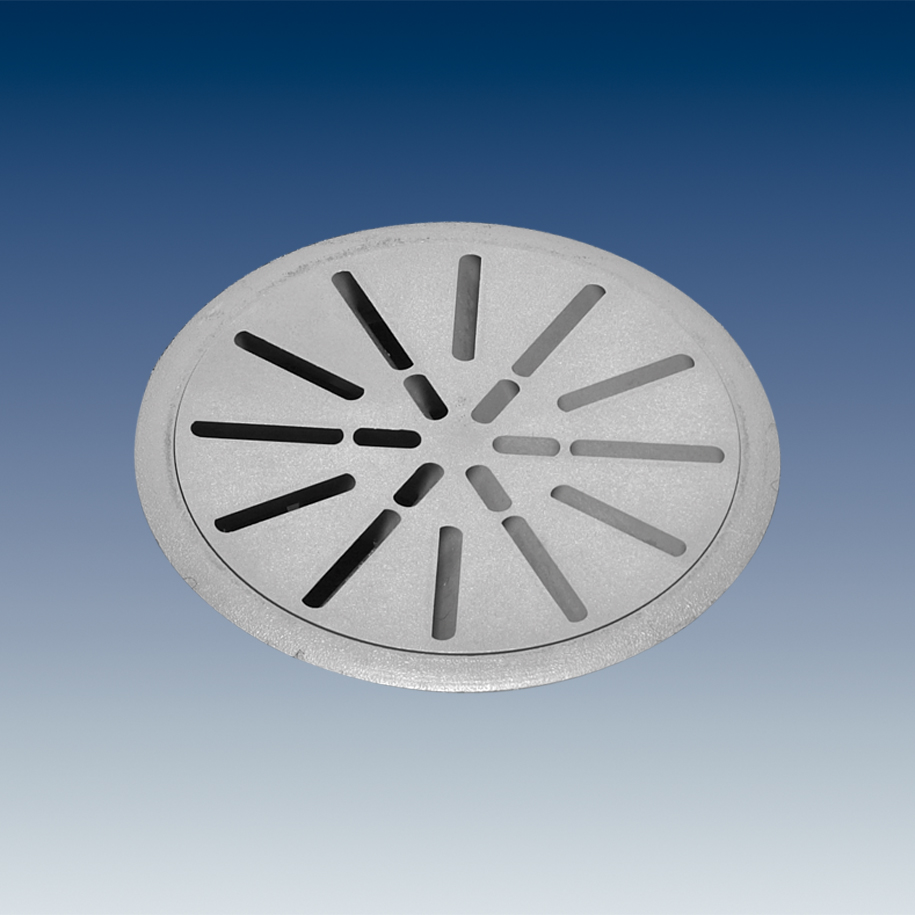

Adjustable floor outlet BA-V-DN 150

Product specification

  • Adjustable floor outlet BA-V-DN 150

    Installation in raised floors; air supply from below, with adjusting disc to change the discharge pattern from 'floor twist outlet' with high-turbulence vertical flow to 'floor displacement outlet' with low-turbulence, radial horizontal flow.​
    • Volume flow rate range: 5.5 – 14 l/s [20 – 50 m³/h]
    • ​Nominal size: DN 150

  • Category

    Air outlets - Floor

Description

  • Slim vertical jet with intensive indoor air admixture
  • For low floor plenums, installation with floor insert in floor orifices
  • Twist element and clamp insert made of plastic
  • For air connection to the ‘pressurized plenum’ system
  • Floor insert with perforated throttle disk
  • Available on request with central recess to accommodate floor covering

Downloads

E1.3.3_BA-V-DN150_Adjustable floor outlet_wTC

Productfoto’s


Referenties

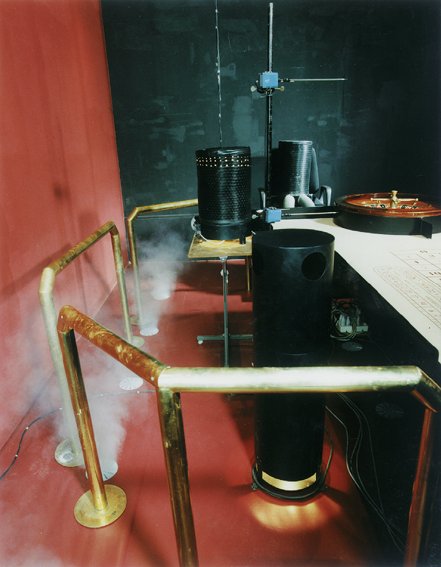

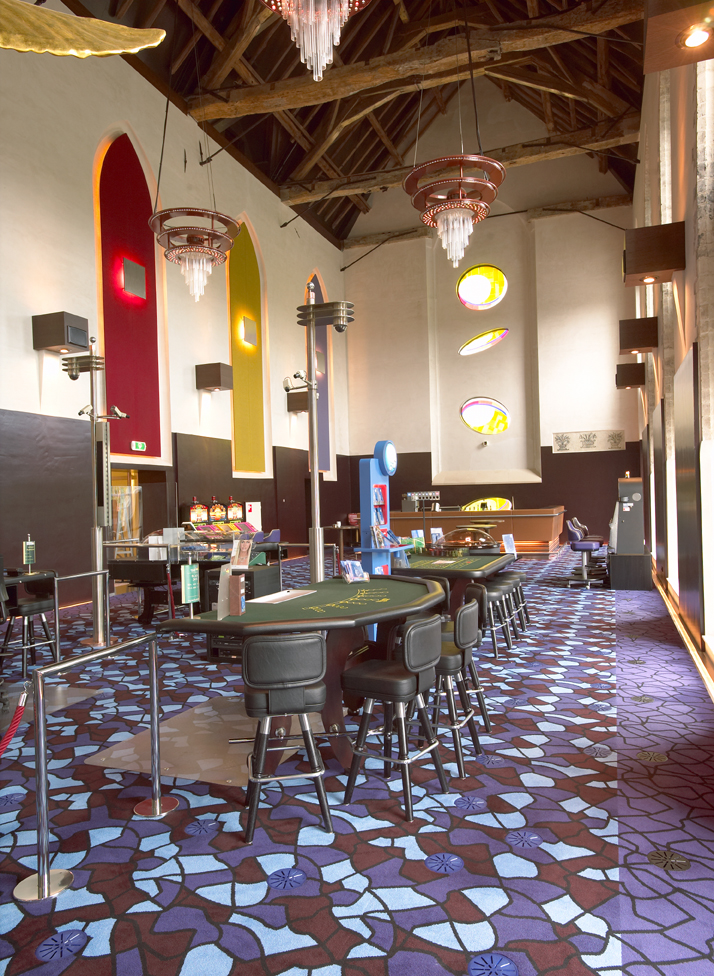

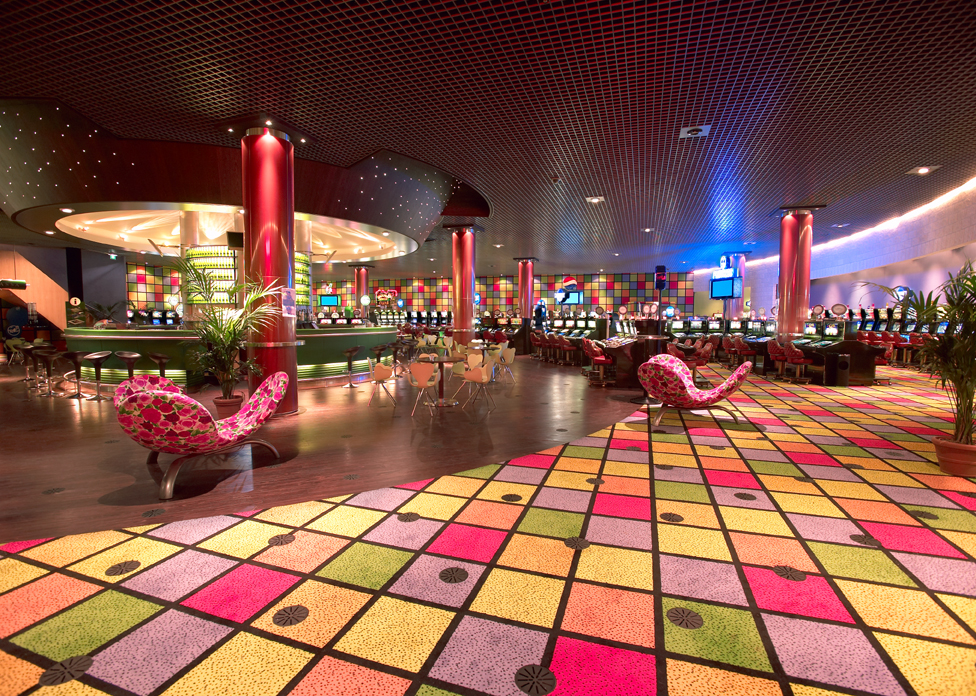

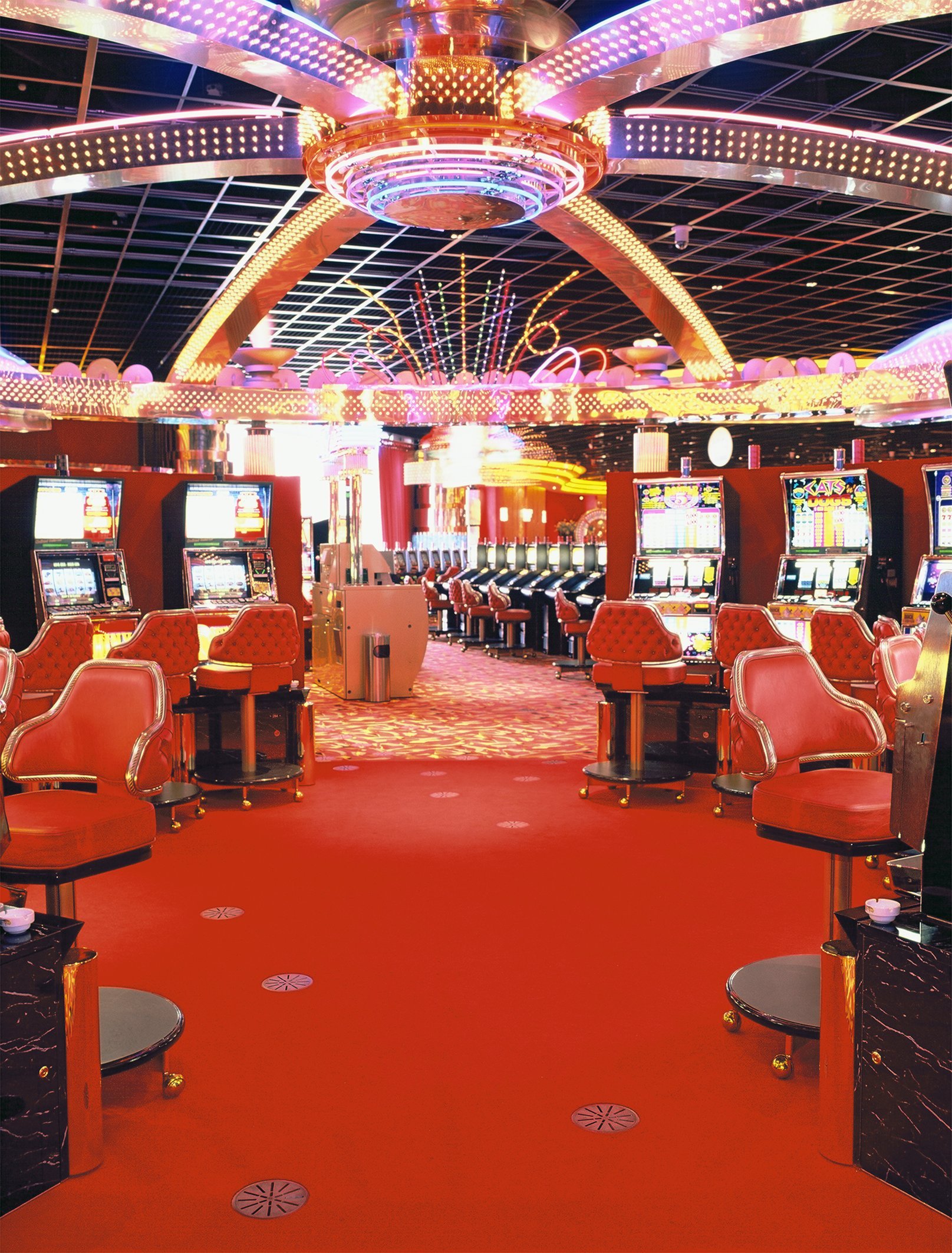

KLM Operations Control/Schiphol, Holland Casino's
