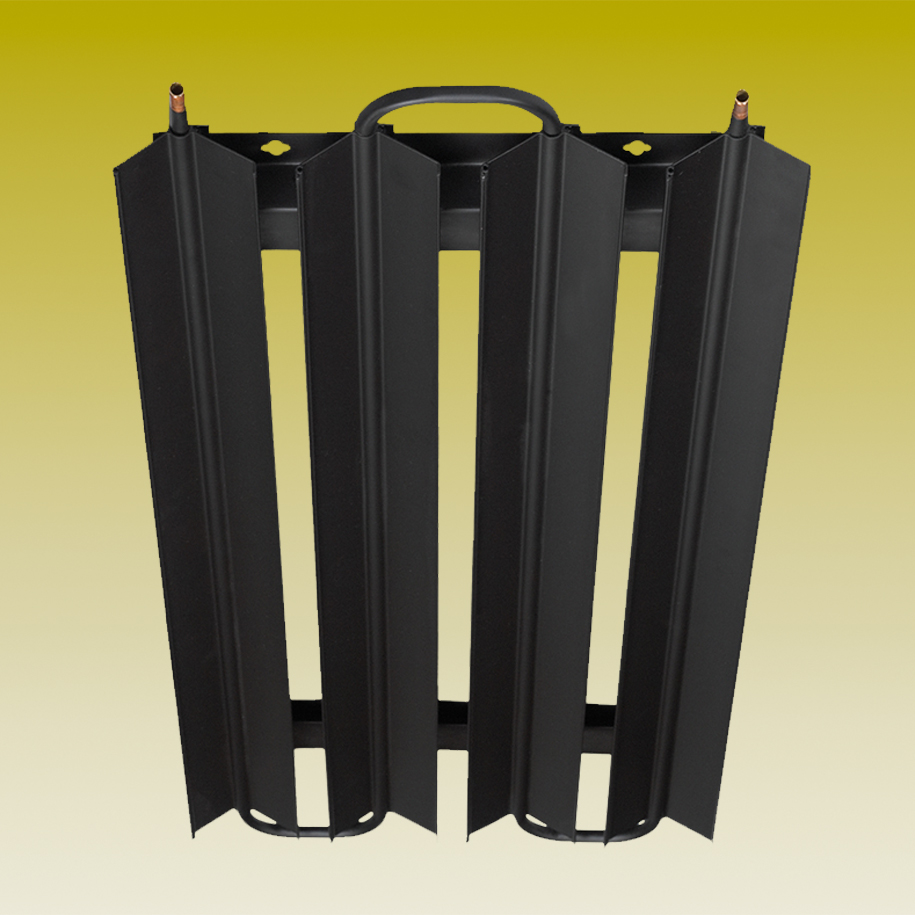

Static cooling ceiling system SKS-4/3, for concealed installation

Product specification

  • Static cooling ceiling system SKS-4/3, for concealed installation

    ​High-capacity elements for installation above open, suspended ceilings; suitable for cooling all room types and applications but also usable for heating.​
    • Nominal length: 1 000 mm – 4 000 mm​
    • ​Nominal width: 350 mm – 1 475 mm
    • ​Nominal height: ​85 mm
    • ​Pipe spacing: ​125 mm
    • ​Connection type:
    • ​push-in fitting, press-fitted connection or solder end
    • ​Installation height: ​≥ 185 mm
    • ​Surface finish: ​powder coating to RAL (standard RAL 9005)
  • Category

    High capacity ceiling systems - Cool- and heatingsystems

Description

  • Standard cooling capacity 175 W/m² of cooling element suspended false ceiling (to DIN 4715)
  • Suitable for high cooling capacities, as required in offices with high heat loads, television studios, technical rooms, or in the industrial sector
  • Uses the retention capacity of the concrete ceiling
  • Low temperature differences in the occupied zone
  • Combinable with any air distribution system
  • Cooling elements are independent of the false ceiling, so that mechanical installations can be carried out largely separately from ceiling construction
  • Low installation height saves on building costs and makes this systems particularly suitable for renovation and refitting
  • The basic element is copper serpentine pipework in one piece, thus no special requirements for chilled water quality; low system costs, long lifetime, assured quality, operating pressure up to 16 bar
  • Good dynamic response
  • No combustible components

Downloads

E2.1.1.1_SKS-4-3_Static cooling ceiling system
