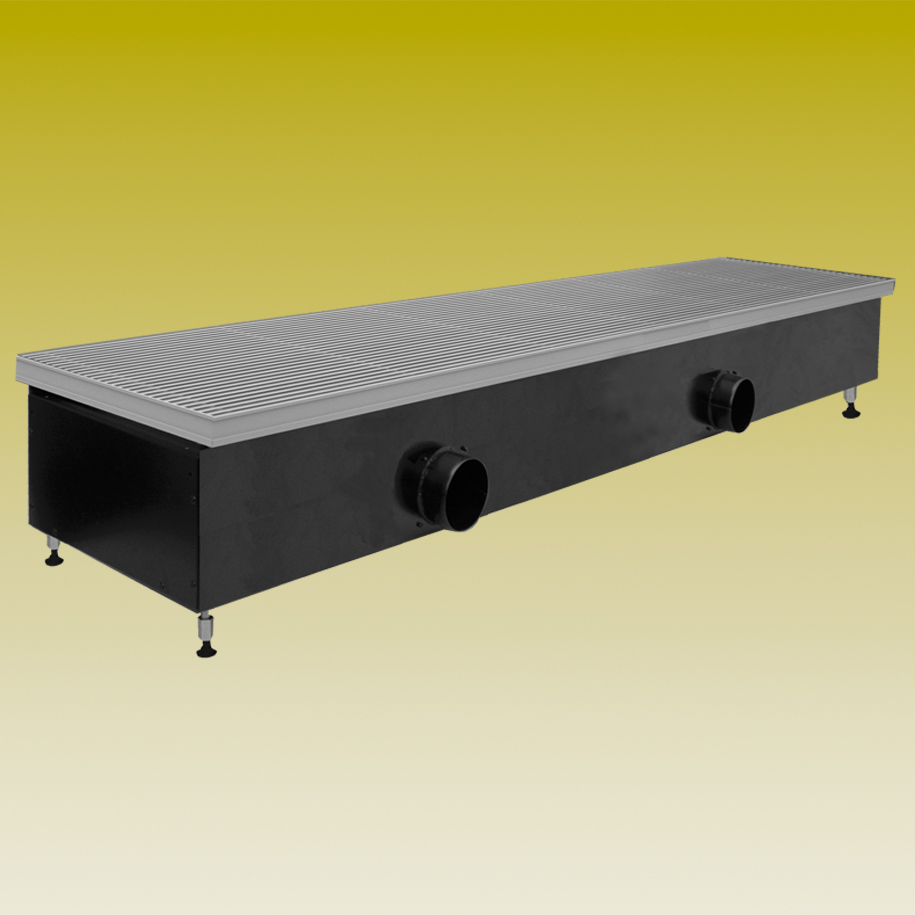

Rectangular floor displacement outlet Q-BR

Product specification

  • Rectangular floor displacement outlet Q-BR

    The rectangular floor displacement outlet ist designed to deliver supply air to commercial rooms with raised floors or floor plenums. It is placed on the concrete slab and is level with the raised floor. The air outlet generates a combined mixing/displacement flow or hybrid flow as described in the German guideline VDI 3804. The advantages of this hybrid flow against a mere displacement flow are low air velocities and a low vertical temperature gradient.​
    • Supply air volume flow rate: up to 55 l/(s·m) [200 m³/(h·m)]
    • Temperature difference
    • supply air to indoor air:
    • –1 to –6 K
    • ​Unit length: ​800 / 1 000 / 1 200 / 1 450 / 1 700 / 1 900 mm
    • ​Unit depth: ​140 / 180 / 260 (standard) / 340 mm
    • ​Unit height:
    • ​190 mm (standard)
    • 130 mm (supply air connection at the bottom)
  • Category

    - Facade- and floorsystems - Cool- and heatingsystems

Description

  • Combined mixing/displacement flow or hybrid flow as described in German VDI 3804 guideline
  • For mounting in raised floors
  • Volume flow rate up to 55 l/(s·m) [200 m³/(h·m)], one-way or two-way discharge
  • Draught-free indoor air flow with very low air velocities in the occupied zone
  • Large supply air coverage (up to 6 m)
