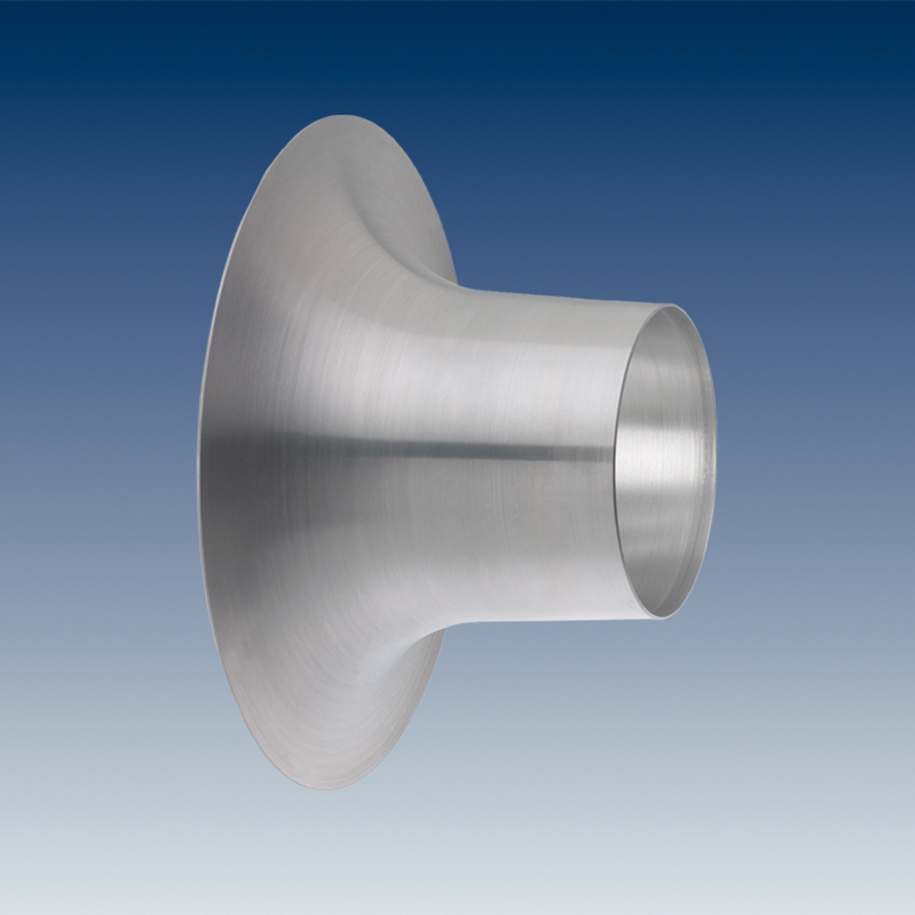

Jet nozzle – DW-N2

Product specification

  • Jet nozzle – DW-N2

    For installation on walls, pillars or galleries, particularly suitable for rooms with very high acoustic requirements and where the requisite discharge angle can be predetermined.​
    • Volume flow rate range: up to 589 l/s [2 120 m³/h]
    • ​Nominal sizes: DN 60 to DN 250
    • ​Throw: ​3 – 50 m
    • ​Discharge height: ​2.5 – 10 m
  • Category

    Air outlets - Wall

Description

  • Circular free jet
  • Fixed discharge direction
  • Extremely low sound power level
  • Very low pressure loss
  • Direct connection to main supply air duct or pressurized chamber, or connection with push-in end for spiral-seam duct or with slip-on end for shaped parts
