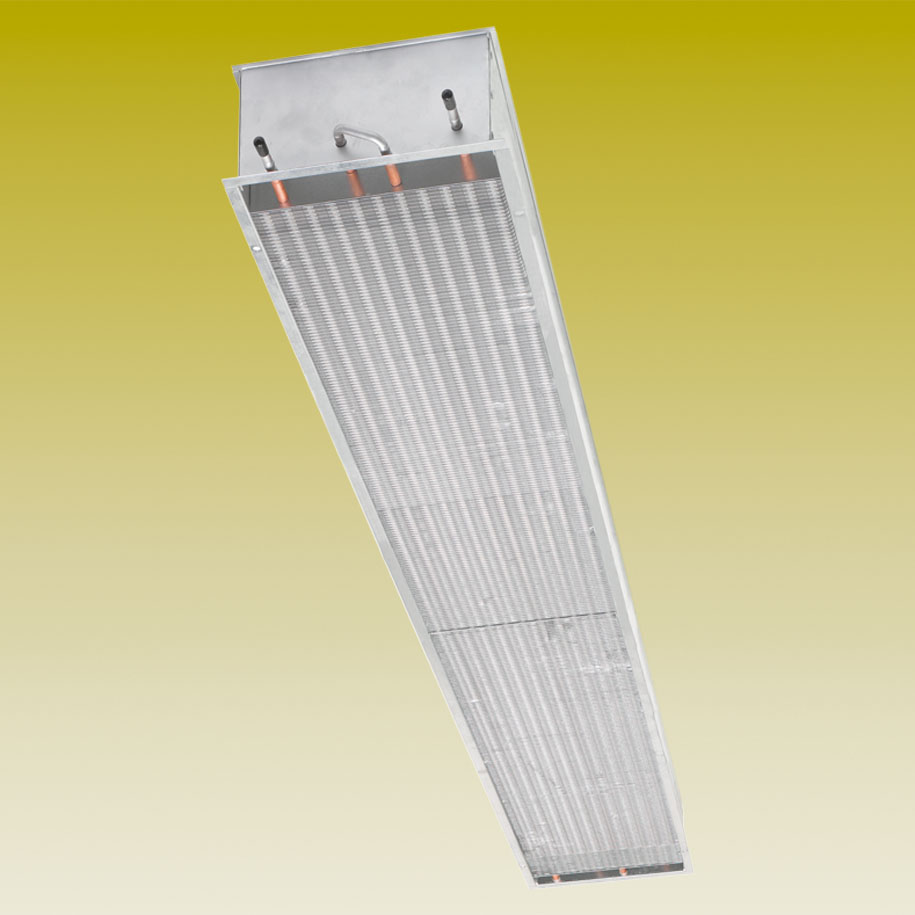

Chilled beam DK-F, without ventilation function

Product specification

  • Chilled beam DK-F, without ventilation function

    For room cooling in the commercial sector, trade and industry, with high cooling capacity. Various installation options: above open ceilings, integrated into ceilings, in visible suspension from the concrete ceiling, or built into the chilled sails.
    • Nominal width: ​300, 400, 500 and 600 mm
    • ​Nominal height: 180 and 250 mm
    • ​Nominal length: ​1 200, 1 500, 1 800, 2 100, 2 400, 2 700 and 3 000 mm
    • ​Surface finish:
    • ​wet painted to RAL (standard RAL 9011)
    • DK-FZ: RAL 9011 ground note
    • DK-FS: RAL 9010 painted
    • ​Connection type:
    • ​sleeve Rp ½,
    • or calibrated pipe and suitable for push-in fitting
  • Video

    Play Video

  • Category

    - Chilled beams - Cool- and heatingsystems

Description

  •  Standard cooling capacity up to 400 W/m
  • (B = 600 mm, H = 250 mm, measured following DIN 4715)
  •  “Silent cooling” principle with heat, removal almost solely by way of convection
  • Compact construction design and easy mounting
  • Well suited for refitting
