Product specification
-

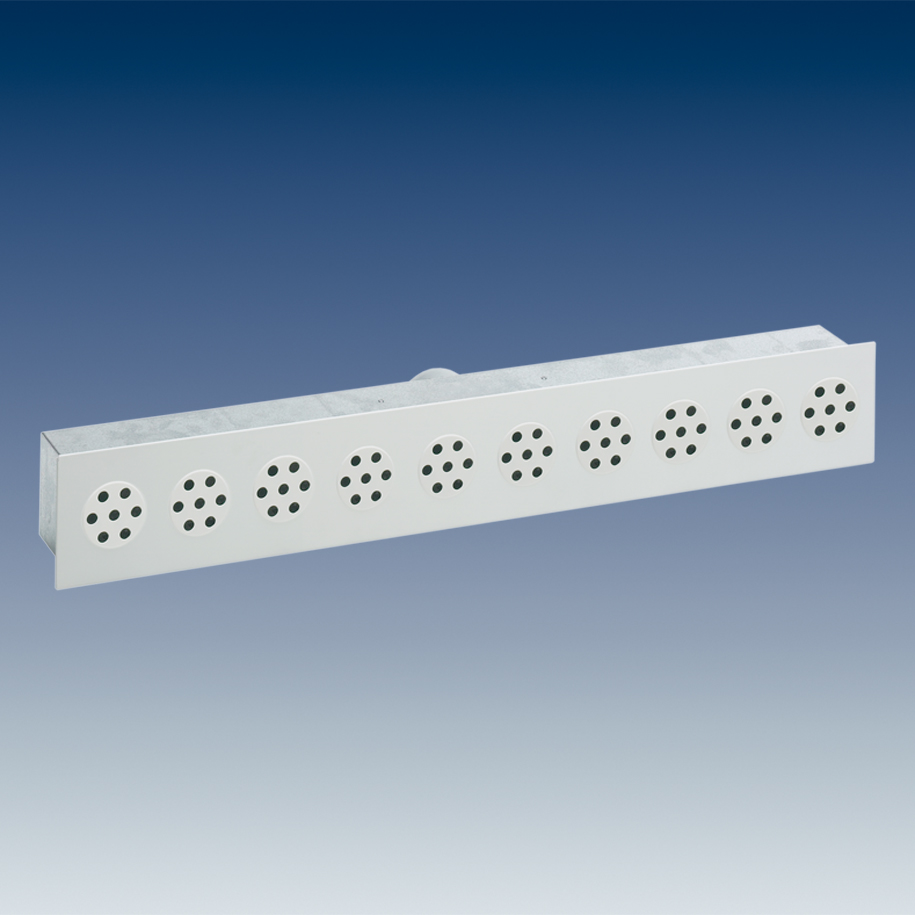

Multiplex outlet – FA-VT
For installation in corridor walls of offices, meeting rooms, etc., to provide the occupied zone with supply air spread out into thin single jets.- Volume flow rate range:
- - single-row: ≤ 43 l/(s•m) [155 m³/(h•m)]
- - double-row: ≤ 50 l/(s•m) [185 m³/(h•m)]
- Nominal lengths: 600, 800 und 1 000 mm
- Height of air outlet: 140 mm
- Discharge height: 2.5 – 4 m
-
Video
-
Category
Air outlets - Wall
Description
- Radial, horizontal jet spread at high level of thermal comfort
- Perforated square face, grid dimensions: 600 x 600 mm and 625 x 625 mm
- Square design for integration into gypsum board ceilings
- Very uniform air discharge; as a result, no or extremely low dirt accumulation on the ceiling
- Segment covers enable to adapt the supply air distribution to the room geometry, e.g. narrow corridor with 180° discharge
Downloads
E1.2.1.1_FA-VT_Multiplex outlet
