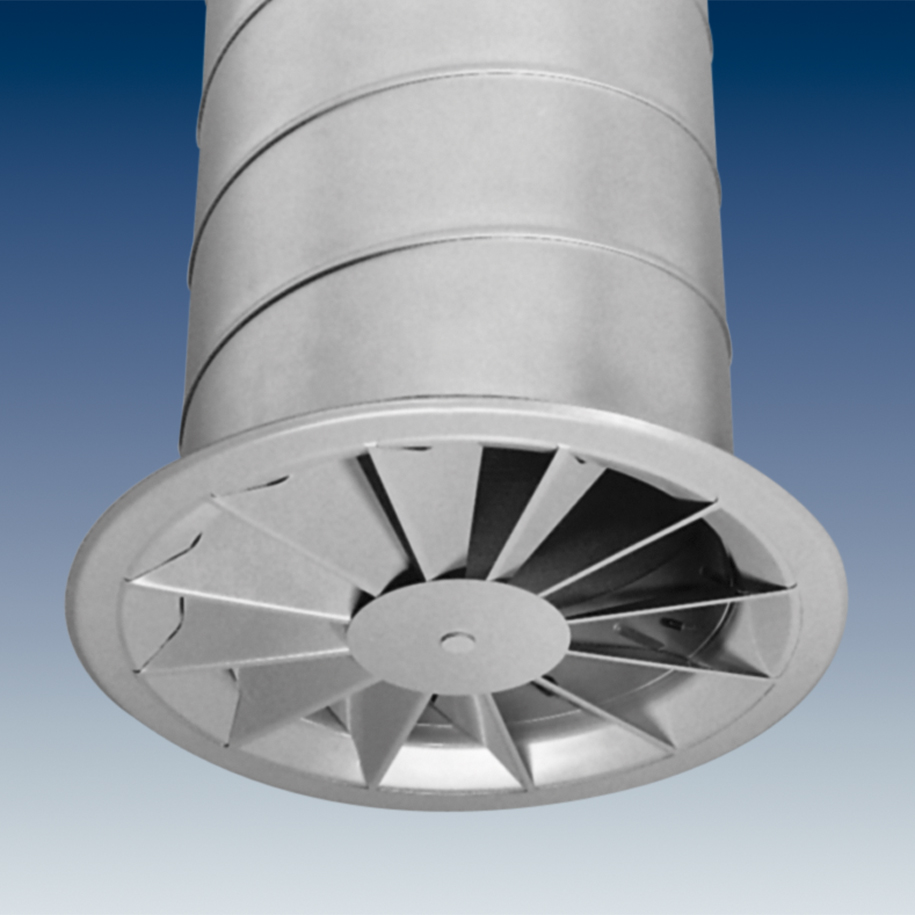

Adjustable radial outlet – RA-V

Product specification

  • Adjustable radial outlet – RA-V

    For installation flush with ceiling or downstanding in high halls, particularly suitable for large thermal load fluctuations.
    • Volume flow rate range: ​61 – 1 530 l/s [220 – 5 500 m³/h]
    • ​Nominal sizes: DN 200 to DN 500
    • ​Discharge height: ​2.5 – 13 m
  • Video

    Play Video

  • Category

    Air outlets - Ceiling

Description

  • Radial, horizontal jet dispersion
  • Connection to flexible or spiral seam duct via reducer or connection box
  • Convenient screw fastening from below
  • Perforated cover screen available on request
  • Also available as return air inlet

Downloads

E1.1.4.1_RA-V_Adjustable radial outlet_04.2013_cav

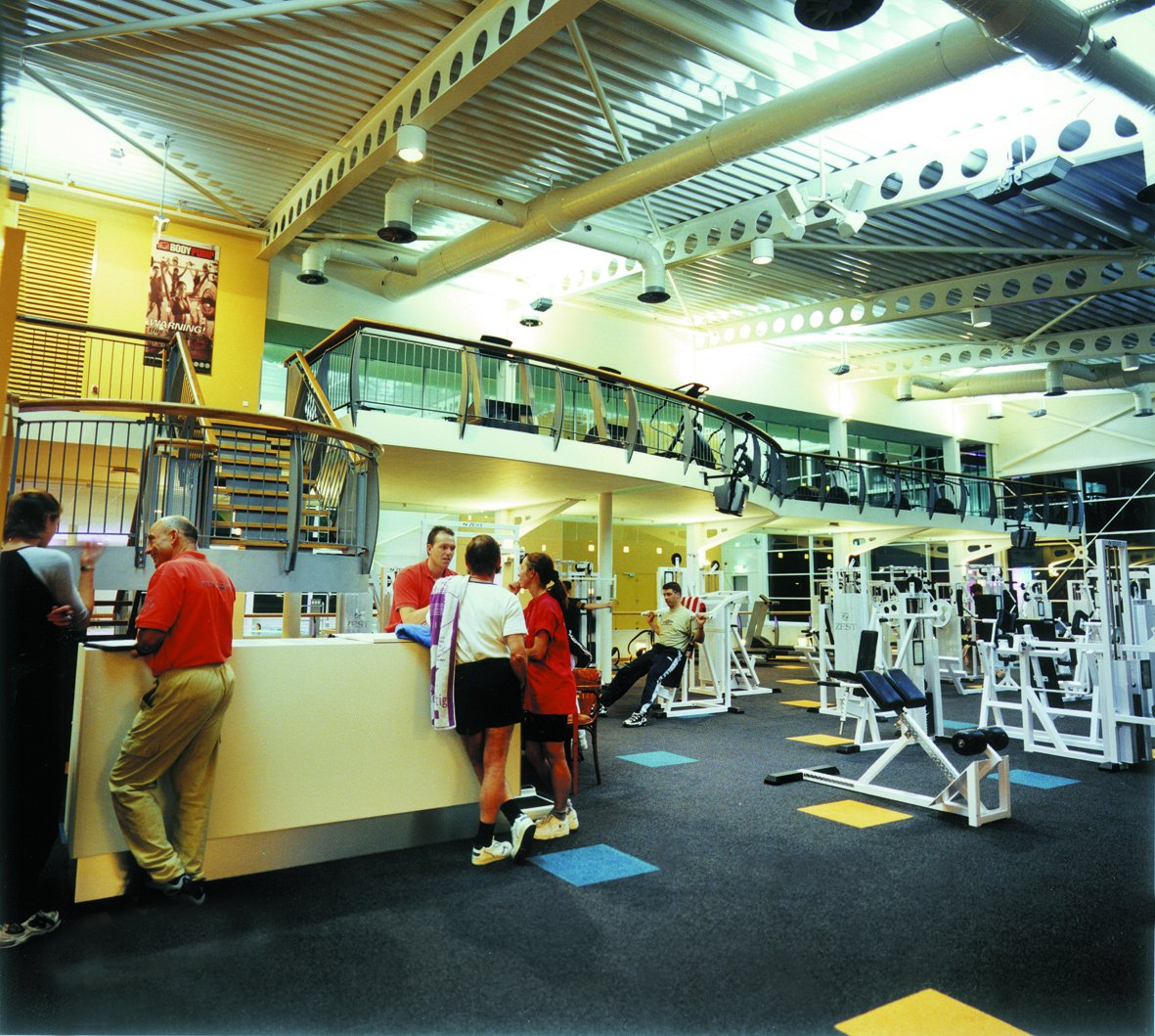

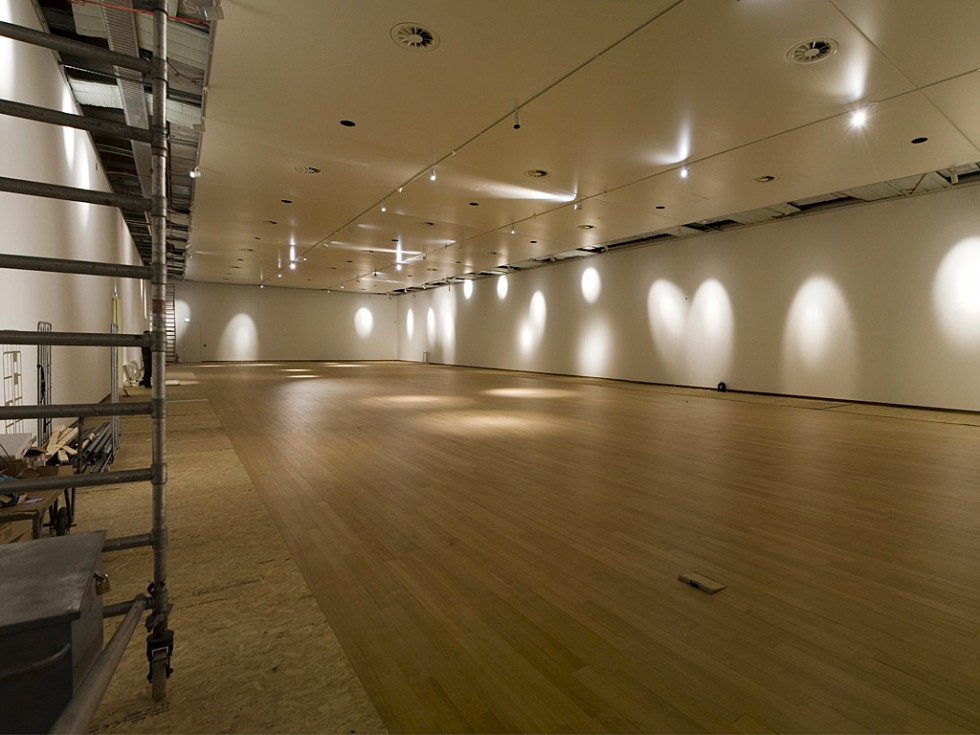

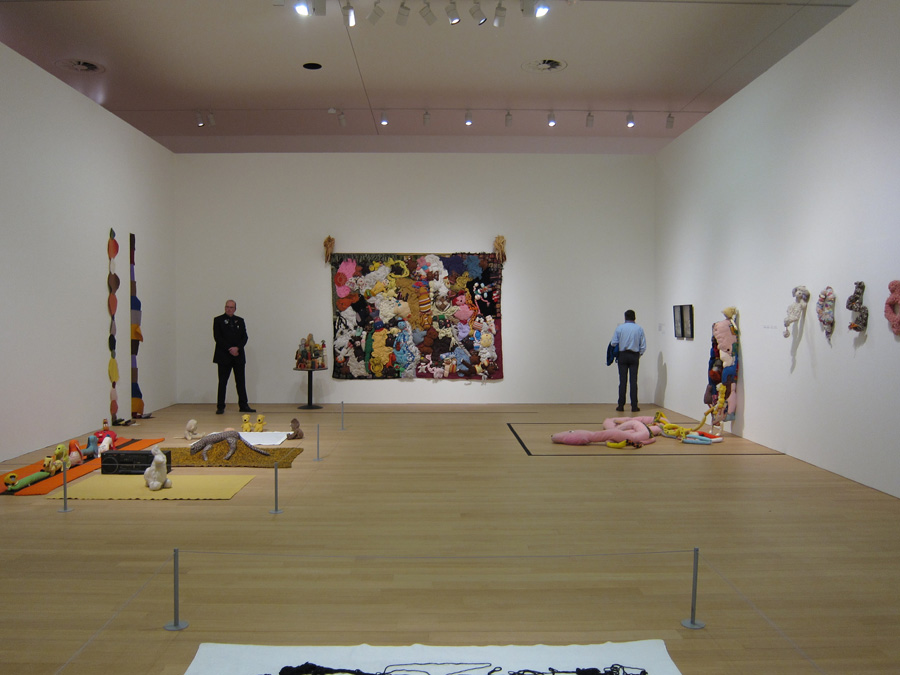

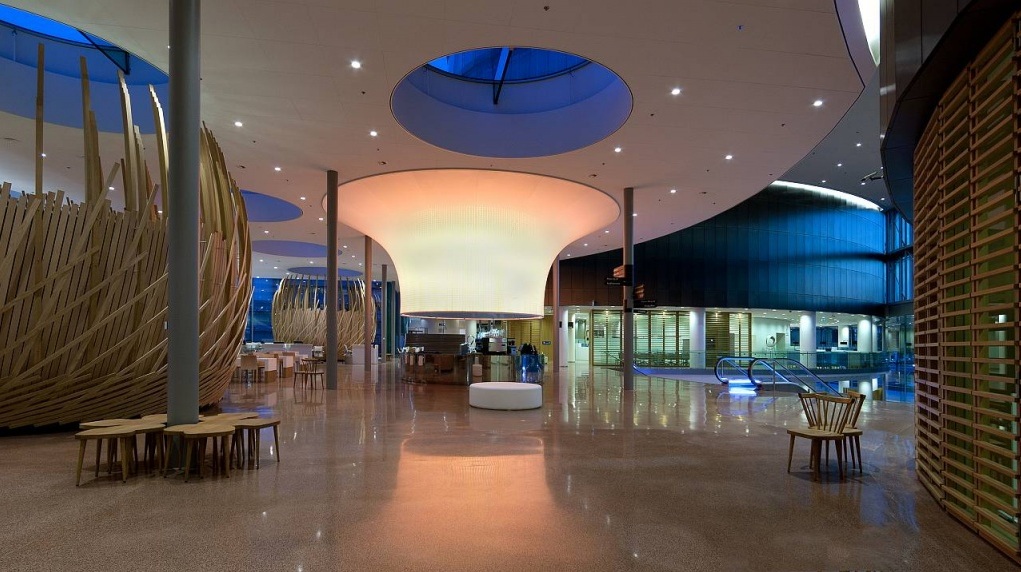

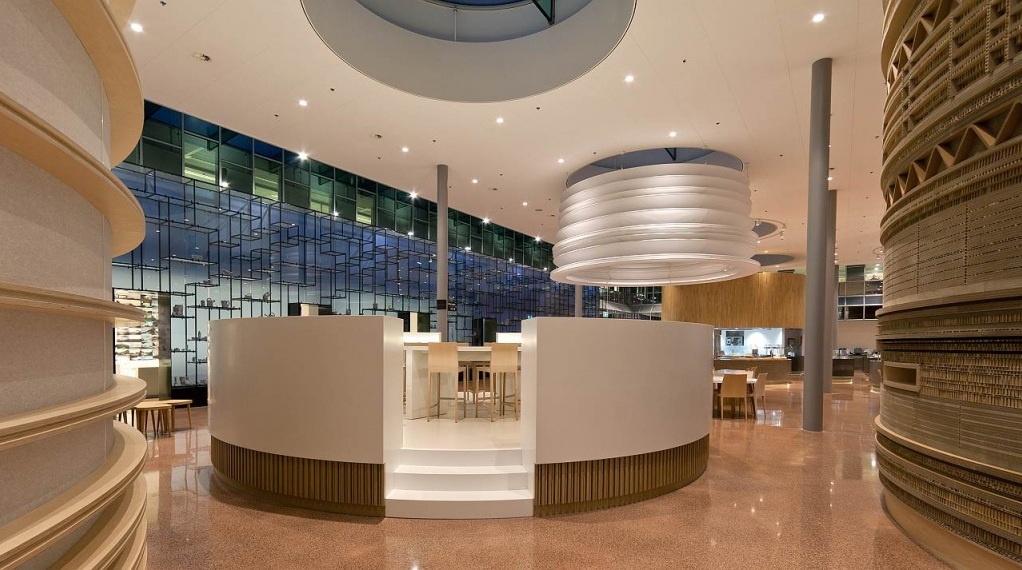

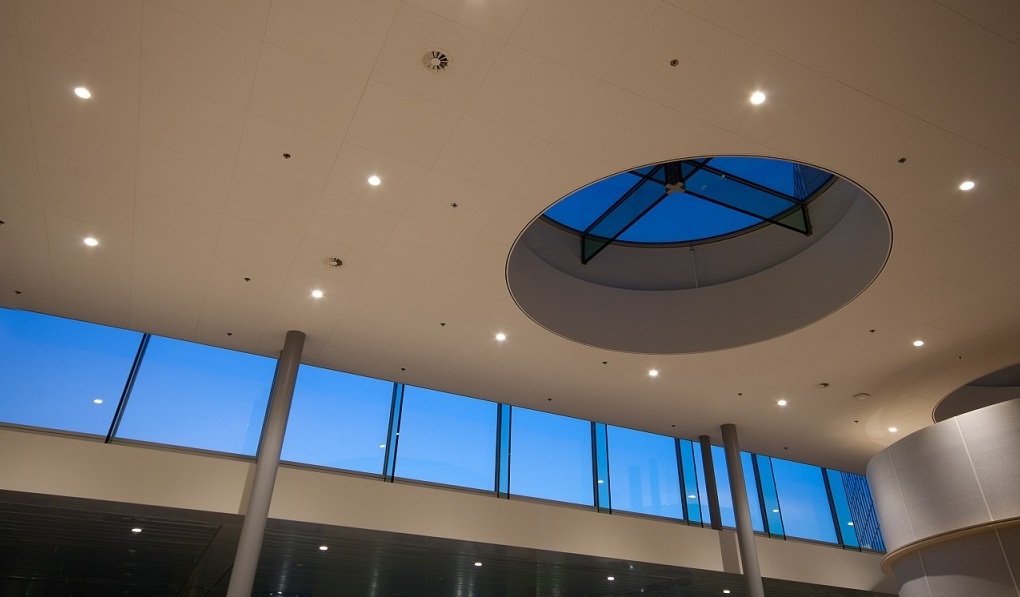

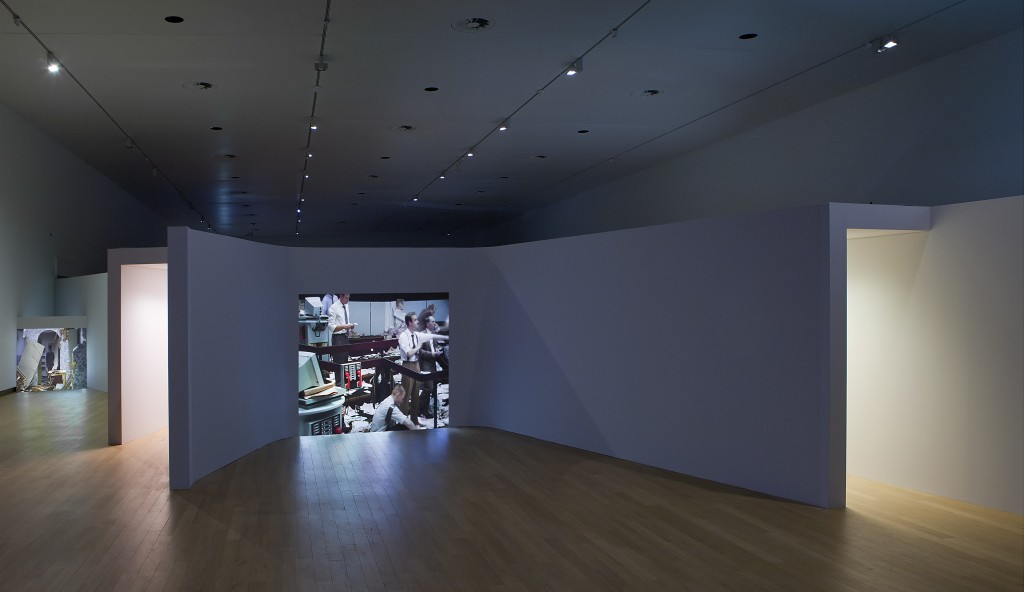

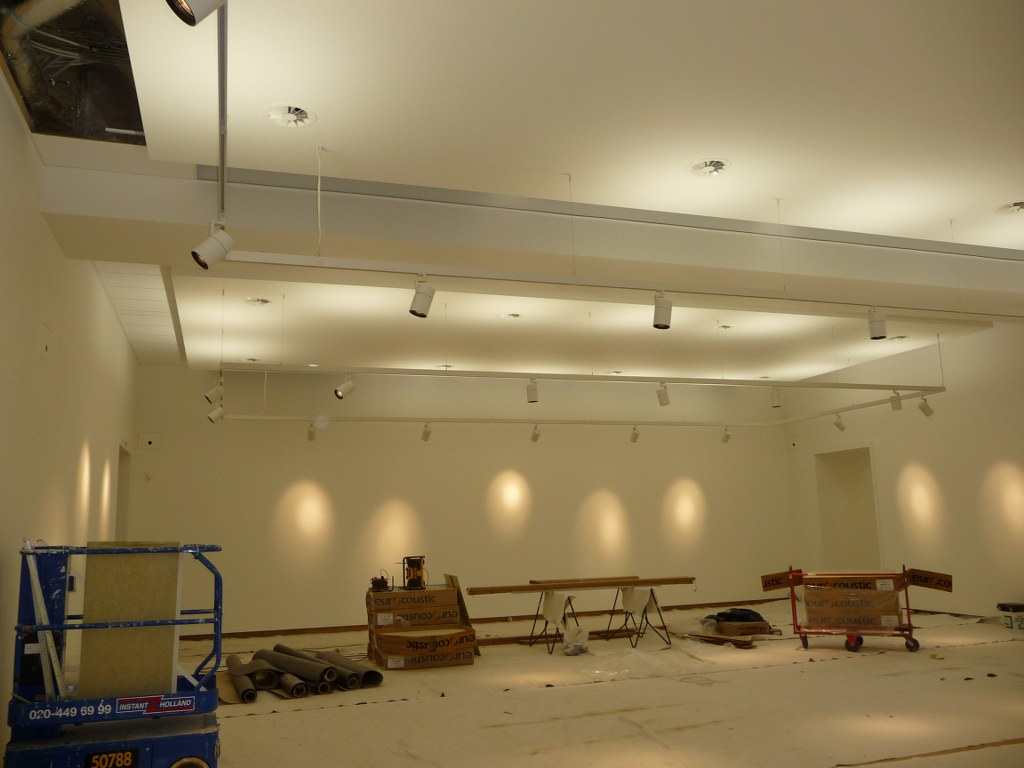

 Productfoto’s
