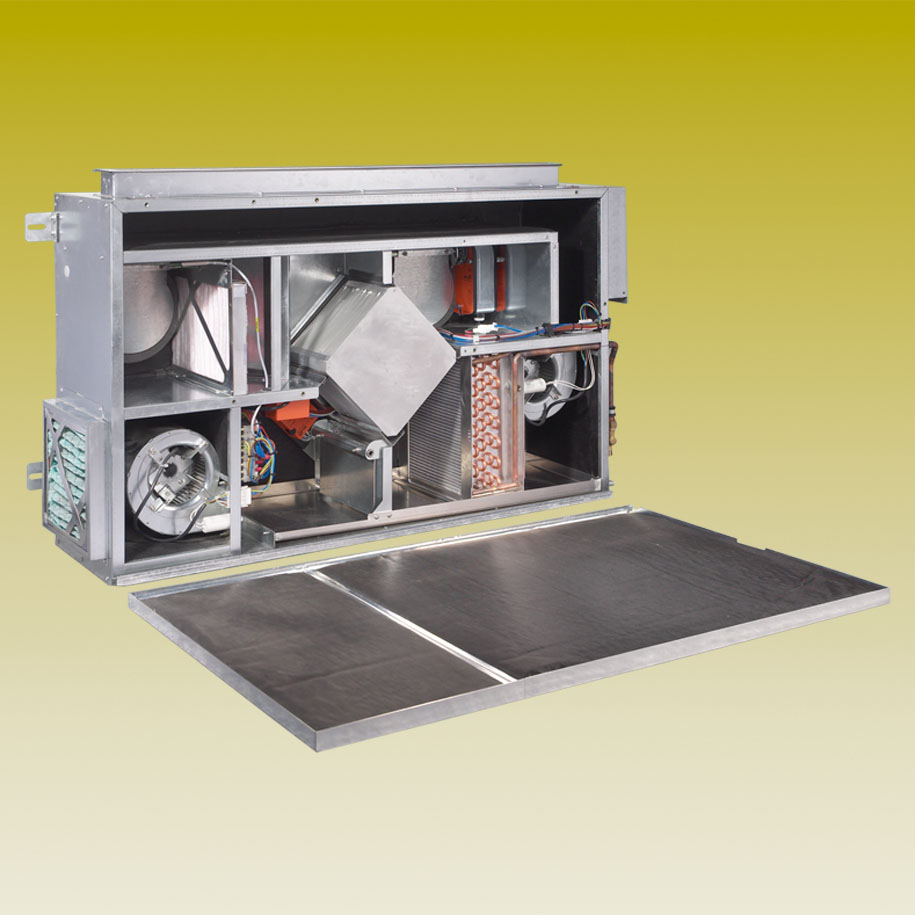

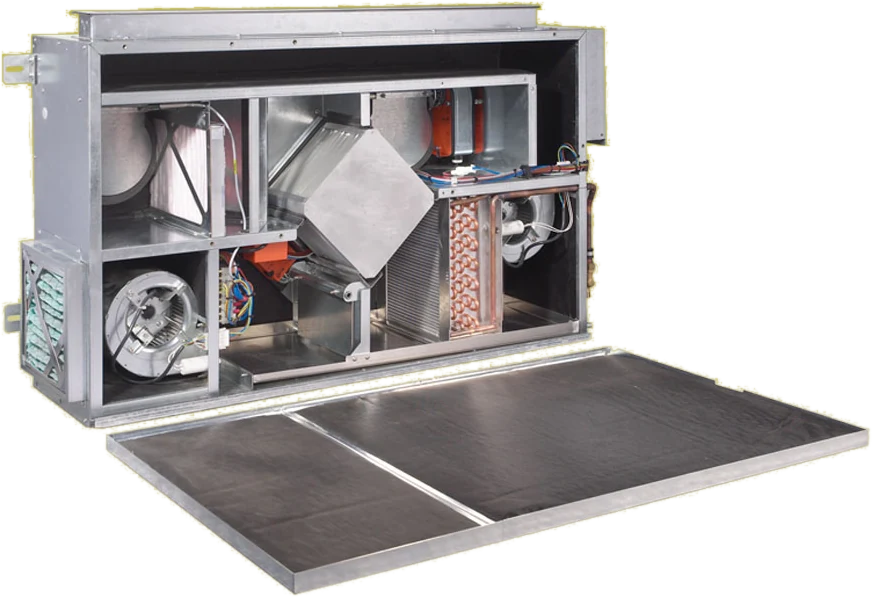

Ventilation unit (supply/return air) for mixing ventilation LG-ZA-M-SB, for vertical parapet mounting

Product specification

  • Ventilation unit (supply/return air) for mixing ventilation LG-ZA-M-SB, for vertical parapet mounting

    Ventilation unit for integration into the parapet of a facade, with direct outdoor and exhaust air connections; ductless ventilation. Housing made of galvanized sheet metal including: air filters, heat recovery system, heating and cooling coils, air dampers, supply and return air fans; 2-row adjustable induction outlet for thermal facade screening and direct workplace ventilation; DDC controller and control valve.​
    • Supply/Return air
    • volume flow rate: max. 53 l/s [190 m³/h]
    • respectively
    • ​​Amount of heat recovered: approx. 50%
    • ​Total cooling output:
    • including:
    • - for cooling down
    • 33% outdoor air
    • - for room cooling
    • when tR = 26 °C ​720 W
    • 200 W
    • 520 W
    • ​Cold water temperature: ​14 / 17 °C
    • ​Total heating output:
    • including:
    • - for heating up
    • 33% outdoor air
    • - for room heating
    • when tR = 22 °C ​1 200 W
    • 280 W
    • 920 W
    • ​Hot water temperature: ​50 / 40 °C
    • ​Operating voltage: ​230 V / 50 Hz
    • Width:
    • Height:
    • Depth: ​1 000 mm
    • 650 mm
    • 297 mm
