Trapezoidal displacement outlet VA-T

Product specification

  • Trapezoidal displacement outlet VA-T

    For factories with airborne dust, fibres or aerosols, and permanent cooling.
    • Volume flow rate range: ​85 – 695 l/(s•m) [300 – 2 500 m³/(h•m)]
    • ​Width: 140, 290 und 500 mm
    • ​Length: ​800 – 1 800 mm
    • ​Coverage zone of
    • supply air jets: ​
    • 4 – 8 m

  • Video

    Play Video

  • Category

    Air outlets - Displacement industrial sector

Description

  • Low-turbulence displacement flow
  • Installation directly below main supply air ducts, as a rule several in a row
  • Umbrella-shaped discharge direction from horizontal to downward incline and vertical downflow
  • For applications with permanent cooling
  • On type partly covered for use directly in front of a wall
  • Discharge surface detachable for easy cleaning
  • Discharge height 3 to 4 m

Downloads

E1.5.3.1_VA-T_Trapezoidal displacement outlet_wTC

D1.5.3.1_VA-T_Trapezfoermiger Verdraengungsauslass

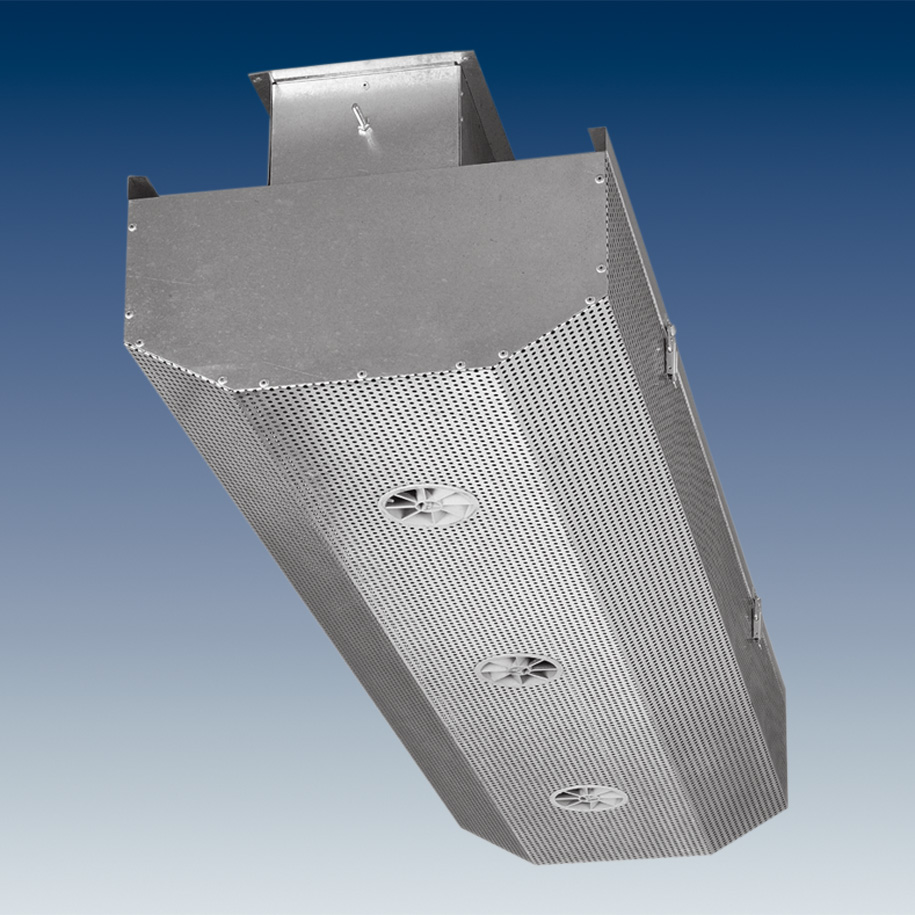

Productfoto’s
