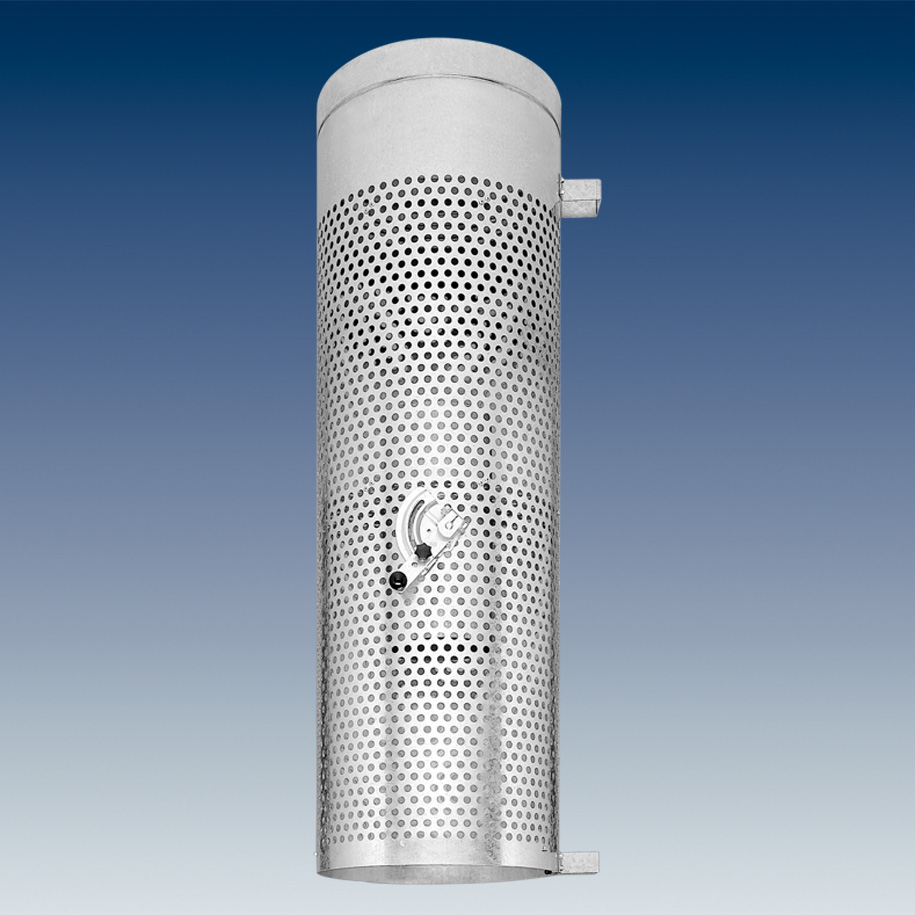

Circular displacement outlet VA-ZD

Product specification

  • Circular displacement outlet VA-ZD

    Suitable for rooms where the supply air is discharged at points either at approx. 3 m height or directly on the floor.
    • Volume flow rate range: ≤ 2 800 l/s [10 000 m³/h]
    • ​Nominal sizes: DN 250 – DN 630
    • Primary penetration depth: ​up to14 m
    • Maximum supply air
    • penetration depth: ​
    • up to20 m

  • Video

    Play Video

  • Category

    Air outlets - Displacement industrial sector

Description

  • Low-turbulence displacement flow

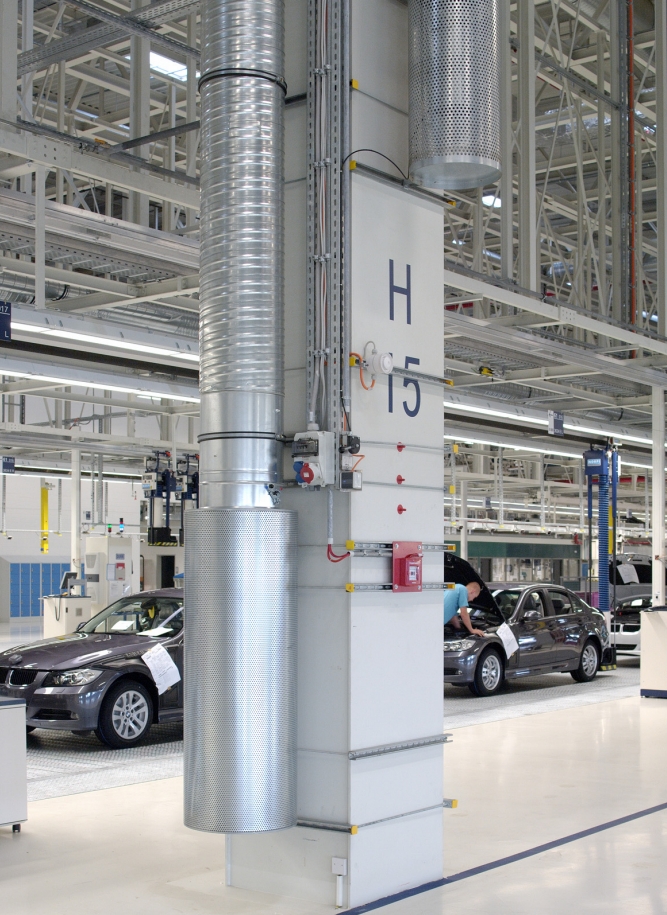

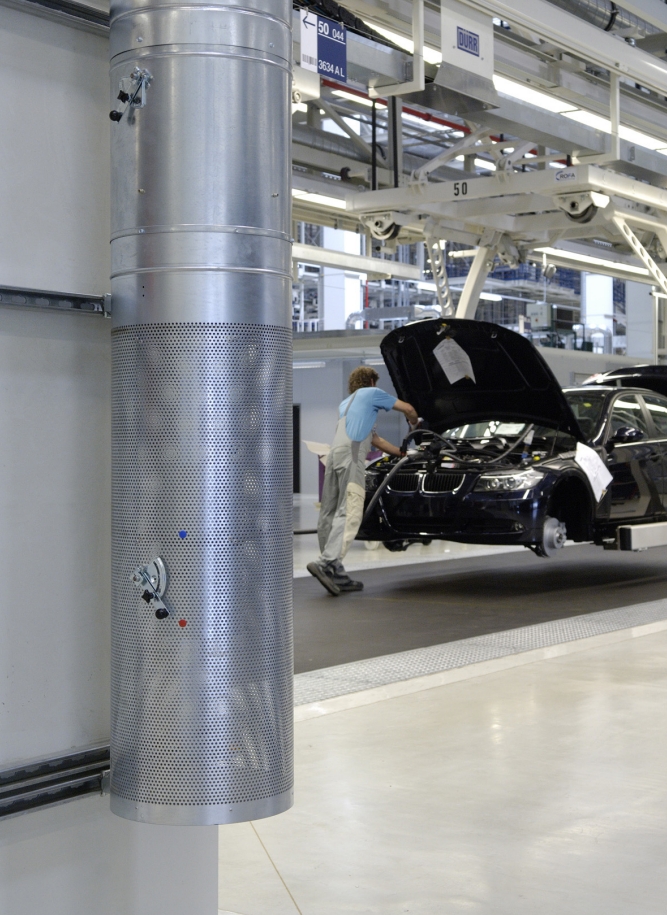

  • Placement at approx. 3 m height or on the floor, free standing in room or in front of a pillar or wall
  • Radial discharge direction
  • Stepless adjustment of discharge direction from approximately horizontal to vertical downflow

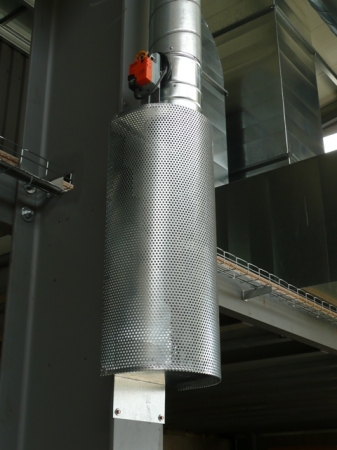

  • Adjustment by hand, servomotor or automatic thermal control unit
  • Well suited for cooling and heating
  • Connection to duct to DIN 24145
