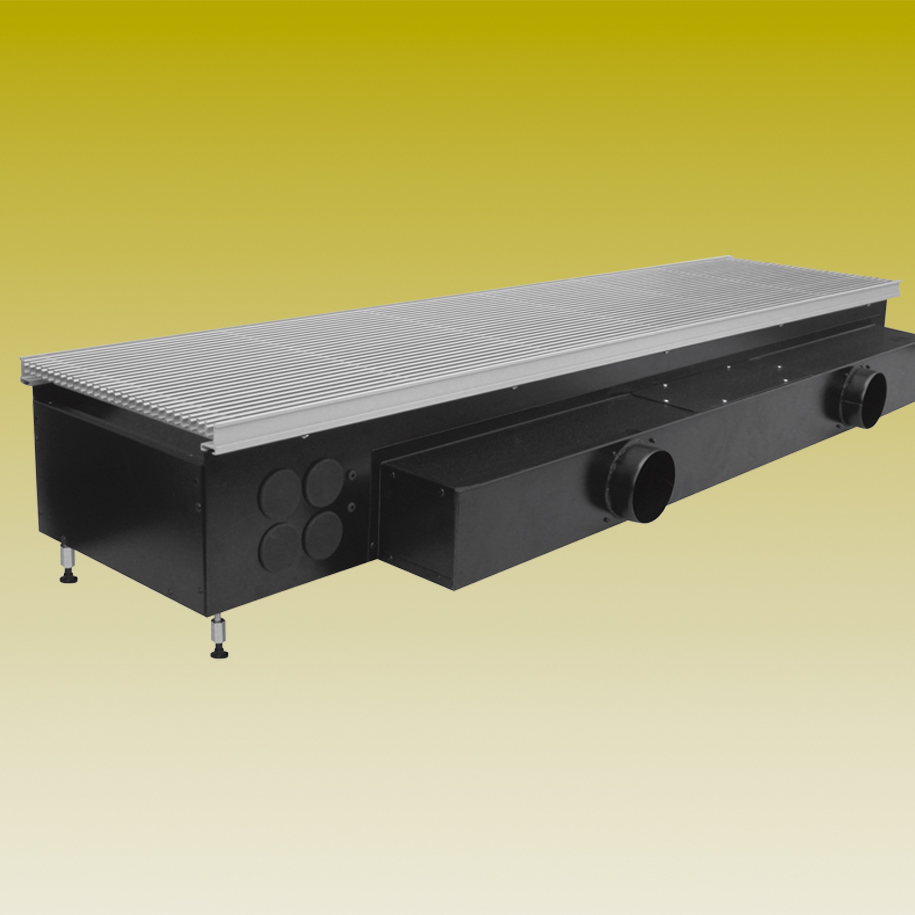

Vloer inductie unit IG-M-LB, voor vloer montage

Specificaties

  • Vloer inductie unit IG-M-LB, voor vloer montage

    Induction unit for cooling, heating, and fresh air supply along the building facade, via a raised floor, providing a high level of thermal comfort.

    • Primary air volume flow rate: 4 – 36 l/s [15 – 130 m³/h]
    • Total cooling output: max. 1 320 W
    • ​Chilled water temperature: ​15 / 17 °C
    • ​Heating output: ​max. 1 200 W
    • ​Hot water temperature: ​50 / 40 °C
    • Heating output with self-convection: ​
    • 350 W
    • ​Width:
    • ​1 150 mm
    • (lieferbar 800, 900, 1 150, 1 350, 1 600 mm)
    • Grille depth: ​380 or 500 mm
    • ​Height: ​220 mm
  • Video

    Video afspelen
  • Categorie

    - Façade en vloersystemen

Omschrijving

  • For cooling, heating, and fresh air supply along the facade, via a raised floor, providing a high level of thermal comfort
  • Primary air volume flow rate: 4 to 36 l/s [15 to 130 m/h]
  • Low pressure loss (70 to 200 Pa), therefore energy-saving operation
  • Low sound power level
  • Heating also possible without primary air, which saves energy when heating at night and at weekends
  • Heat exchanger cleanable from the top or the bottom (in compliance with requirements of VDI 6022).
  • The large fin spacing enables easy cleaning and obviates the need for a filter.
  • Suitable for new or refurbished buildings
  • Optional accessory: condensate tank below the heat exchanger, inclusive of drain with ½” connector

Downloads

E2.5.2.1_IG-M-LB_Induction unit for mixing ventilation, for horizontal floor mounting
